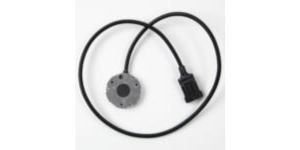

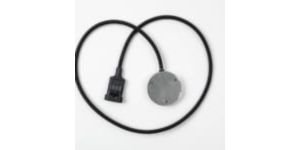

Ultrasonic level sensor Eurosens Dizzi is used for non-contact (non-invasive) level measurement of acoustically transparent liquids. Measurement is done by external echolocation through the bottom of the tank.
LEVEL SENSOR ADVANTAGES
- No tank modification required. All sensor components are placed outside the tank. It is very important when you measure aggressive, explosive, liquid foodstuff, as well as highpressurized liquids.
- You can measure the level of any liquid, including liquefied gas.
- Smart self-diagnostic algorithm provides stable data.
- Explosion-proof certified ( 0Ех ia IIC T6 Ga, [Ex ia Ga] IIC )
LEVEL SENSOR SPECIFICATION
| Power voltage, V | 9 – 30 |
| Max. thickness of the tank wall, mm |  0 – 5 |
| Resolution, in static condition, mm | 0,1 |
| Reverse polarity protection | Yes |
| Temperature range,°C | -40 – +85 |
| Output interfaces | RS-485 |
| Digital protocols | LLS, Modbus |
| Seal rating | IP 67 |
Eurosens Detector 01 used together with differential flowmeters
Deaerator is a special device designed by Mechatronics. Eurosens Deaerator is used together with differential flowmeters to exclude air bubbles from the return fuel line. The presence of air in a fuel line affects fuel measurement results significantly.
Eurosens Detector 01 Advantages
- Flow rate setting range: up to 500 l / h;
- Power supply: 220 V;
- Simultaneous calibration of 10 one chamber or 5 differential sensors;
- Automatic flow control.
Eurosens Detector 01 Specification
| Verification liquid | diesel |
| Limits of relative error of measurement of volume, % | ±0,3 |
| Flow Range, l/h | 1-500 |
| Error limits job flow,% | ±2 |
| Max pressure, MPa | 0,5 |
| Number of simultaneously calibrated sensors, max | 10 |
| Connecting thread | М14х1,5 |
| Power voltage, V/Gz | ~220/50 |
| Dimensions, m, max | 1,3Ñ…0,7Ñ…2,0 |
| Weight, kg, max | 100 |
- Stationary application;
- The stand includes an operator’s workstation;
- Eurosens Detector 01 set with wireless control must be ordered separately.
FUEL DEAERATOR 500A
Eurosens® Deaerator is a special device designed to exclude air bubbles from the return fuel line. Deaerator is used together with differential flowmeters eurosens® Delta.
KEY FEATURES :
- Can be installed on diesel engines of boats, ships, rail locomotives, agriculture equipment, construction machinery, commercial vehicles.
- Insensitive to fuel system contamination.
- No polluting emissions.
- Vibration resistance.
- Compact size and weight.
- Simple installation.
- Minimal hydraulic resistance.
FUEL CONSUMPTION SPECIFICATION :
| Max pressure | 2.5 Mpa |
| Ambient operating temperature | -40 – +85 °C |
| Connection thread | M14x1,5 |
| Flow rate in l/h | 250/500 |
| Ingress protection rating | IP 66 |
FUEL DEAERATOR 250A
APPLIANCE
The air separator eurosens Deaerator 250A is used to separate the gases from the fuel coming from the high pressure pump / nozzles.
MAIN TECHNICAL CHARACTERISTICS
Operating fluid …………………………………………diesel fuel
Ambient operating temperature ◦ C …………from -40 to + 85
Nominal fuel pressure, bar……………………….1/4
Connection dimensions ………….………………..M14x1,5
Operating fuel flow range, L/h …………………2-250
The maximum flow of discharge gas , l/h ..15
Dimensions, mm, ……………………………………..140х80х170
Weight, not more than, kg ……………….……..1.4
RECOMMENDATIONS FOR USE
When installing deaerator you need to follow the Safety rules when working on cars and with flammable liquids. As well as the rules of your company’s safety standards.
Before installing, you must study the installation diagram of Deaerator 250A.
When installing deaerator you need to comply with cleanness of connections. Debris caught in the fuel system can cause failure of the flow meter, and deaerators!
UTILIZATION
Deaerator 250A does not contain hazardous substances and components which constitute a threat to health and environment.
Deaerator 250A does not contain precious metals in amount obligatory for accounting.
FUEL DEAERATOR 500A
APPLIANCE
The air separator eurosens Deaerator 500A is used to separate the gases from the fuel coming from the high pressure pump / nozzles.
MAIN TECHNICAL CHARACTERISTICS
Operating fluid …………………………………………diesel fuel
Ambient operating temperature ◦ C …………from -40 to + 85
Nominal fuel pressure, bar……………………….1/4
Connection dimensions ………….………………..M14x1,5
Operating fuel flow range, L/h …………………10 – 500
The maximum flow of discharge gas , l/h ..25
Dimensions, mm, ……………………………………..140х80х190
Weight, not more than, kg ……………….……..1.5
RECOMMENDATIONS FOR USE
When installing deaerator you need to follow the Safety rules when working on cars and with flammable liquids. As well as the rules of your company’s safety standards.
Before installing, you must study the installation diagram of Deaerator 500A.
When installing deaerator you need to comply with cleanness of connections. Debris caught in the fuel system can cause failure of the flow meter, and deaerators!
UTILIZATION
Deaerator 500A does not contain hazardous substances and components which constitute a threat to health and environment.
Deaerator 500A does not contain precious metals in amount obligatory for accounting.
FUEL DEAERATOR 1500A
APPLIANCE
The air separator eurosens Deaerator 1500A is used to separate the gases from the fuel coming from the high pressure pump / nozzles.
MAIN TECHNICAL CHARACTERISTICS
Operating fluid ………………………………………………….diesel fuel
Ambient operating temperature ◦ C …………from -40 to + 85
Nominal fuel pressure, bar…………………………………………0.25
Fittings size ………….………………………………………………….DN19
Operating fuel flow range, L/h …………………………..25 – 1500
The maximum flow of discharge gas , l/h …………………….100
Weight, not more than, kg ……………….………………………….4.0
RECOMMENDATIONS FOR USE
When installing deaerator you need to follow the Safety rules when working on cars and with flammable liquids. As well as the rules of your company’s safety standards.
Before installing, you must study the installation diagram of Deaerator 1500A.
When installing deaerator you need to comply with cleanness of connections. Debris caught in the fuel system can cause failure of the flow meter, and deaerators!
UTILIZATION
Deaerator 1500A does not contain hazardous substances and components which constitute a threat to health and environment.
Deaerator 1500A does not contain precious metals in amount obligatory for accounting.
