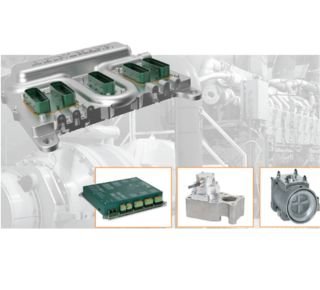

ARTEMIS Dual-Fuel Systems are based on HEINZMANN’s proven gas engine components and powerful actuation and governing units. They ensure a perfect gas-air mixture quality and high conversion ratios. Operating dual-fuel engines with up to 2 MW output, the gas controlled and gas mixer based systems are suitable for stationary applications as well as heavy-duty vehicles.
Gas Admission Valves
MEGASOL is HEINZMANN’s series of electrically actuated gas admission valves. They are intended for gas and dual-fuel operation on industrial turbo charged four-stroke engines. Each cylinder requires one MEGASOL valve. MEGASOL valves ensure proper gas quantity or each cylinder and allow gas flow compensation cylinder for cylinder.

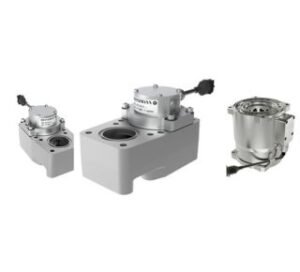

EGASOL Gas Admission Valves
MEGASOL valves are designed to operate with a comparatively high differential pressure of supplying air and gas. They are characterized by excellent load response, precise dosage and individual adjustment of gas quantity for each cylinder. MEGASOL valves have a very low leakage when closed and are easy maintain.
- Precise metering of gas quantity for each cylinder individually
- Fast response and excellent load behaviour of engine
- Suitable for new engines as well as for retrofit solutions
- Available for alternative fuels such as hydrogen or ammonia
- No risk of backfires
MEGASOL 60
Gas Admission Valve
Technical data
- Flow rate (Z-value) : 17
- Max pressure gas supply : 8 bar | 116 psi
- Max. pressure air supply : 6 bar | 87 psi
- Max differential pressure : less than 3 bar | 43 psi
- Voltage supply : 90 VDC
XIOSDual-Fuel
A modular and multi-functional governor for dual-fuel engines. The highly efficient control system provides control strategies for the diesel and gas side, sophisticated safety and monitoring strategies, a control system for the gas path and unrestricted diesel operation at all times.
Technical data
- Processor : 32 Bit 264 MHz
- Communication interfaces : Ethernet, CAN, RS-232, RS-485
- Display : 4.3″ (optional)
- Degree of protection : IP20
- Power supply : 9…32 VDC

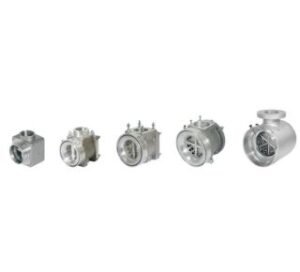

Gas Mixers
Gas mixers are indispensable components in the mixture control systems of gas engines. They guarantee the desired ratio of fuel gas and air regardless of the operating conditions.
- Suitable for naturally aspirated engines and turbocharged engines
- Constant mixture ratio
- Suitable for all gas types
- Uniform air-gas-mixture
- No maintenance required
- Low drop in pressure
Knock Control
The ARIADNE control unit is able to individually detect knocking combustion on each cylinder (max. 20) and maintain optimum operation under all conditions so as to protect the engine from damage.
Technical data
- Power supply: 18 … 32 VDC
- Capacity: up to 20 knock sensor inputs
- Communication: 2x CAN bus, 1x Modbus, 1x serial interface
Engine Types & Applications
Gas Engines |
Dual-Fuel Engines |
CHP |
Gensets |

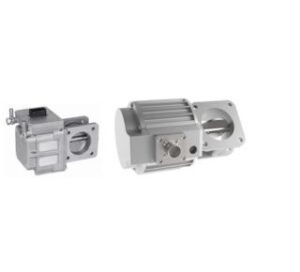

Throttle Valves with Positioner
HEINZMANN throttle valves with integrated positioner are intended for small and medium-sized gas engines. The direct-acting integrated actuator operates in 4Q mode. It is supplied with the tried-and-tested contactless position feedback and an integrated return spring.
- Fast response
- No maintenance required
- Compact
DK 100/StG 3-PD | DK 100/StG 3+-PD
Throttle Valve with Positioner
Technical data
- Voltage supply : 18 … 32 VDC, nom. 24 VDC
- Operating temperature range : -20 … +100 °C
- Ø Throttle valve : 48 / 60 / 68 mm
- Boost pressure at valve : max. 5.8 bar abs.
- Response time : less than 40 ms

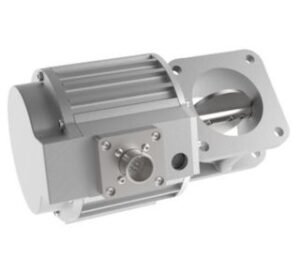

DK 140 / StG 2080-PD
Throttle Valve with Positioner
Technical data
- Voltage supply : 18 … 33 VDC
- Ambient tempertaure : -25 … +90 °C
- Ø Throttle valve : 85 mm
- Boost pressure at valve : max. 8 bar (abs.)
- Response time : 90 ms

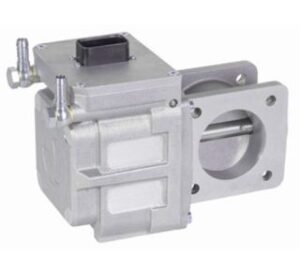

DK 200/StG 3-PD | DK 200/StG 3+-PD
Throttle Valve with Positioner
Technical data
- Voltage supply : 18 … 32 VDC, nom. 24 VDC
- Operating temperature range : -20 … +100 °C
- Ø Throttle valve : 80 / 90 / 100 / 110 mm
- Boost pressure at valve : max. 4 bar abs.
- Response time : less than 40 ms
