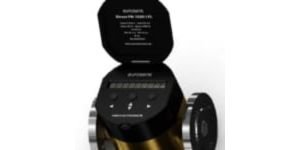

Fuel flowmeters Eurosens Direct 1500, 3000 and 5000 are used for direct diesel measurement in a wide range of fuel flows 30 – 5000 liters/hour with 1% accuracy.
- Can be installed on ships, diesel gensets, locomotives, burners, and other diesel consumers;
- Different output interfaces;
- Models with built-in display and battery;
-
Threaded and flange connections available.
| Parameter | Direct 1500 | Direct 3000 | Direct 5000 |
| Type of connection | Thread or flange | ||
| Supply voltage, V | 10 – 50 | ||
| Reverse voltage protection | Yes | ||
| Accuracy | ±1% | ||
| Temperature range,°C | -40 – +85 | ||
| Max pressure of measured liquid,bar | 25 | ||
| Max flow, liters/hour | 1500 | 3000 | 5000 |
| Min flow, liters/hour | 30 | 60 | 250 |
| Output interface | pulses, RS485, K-Line, CAN (J1939, NMEA2000) | ||
| Number of pulses per liter | 25 | 10 | 4 |
| Protection class | IP 67 | ||
FUEL FLOWMETERS

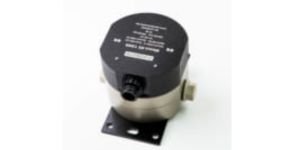

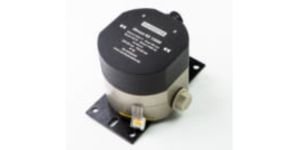

Fuel flowmeters eurosens® Direct 1500 and eurosens® Direct 3000 measure a wide range of diesel fuel and can be installed on ships, diesel gensets, locomotives, burners, and other units with high fuel capacity.
FUEL CONSUMPTION KEY FEATURES
- Magnetic field immunity.
- High-precision measurement.
- Built-in temperature compensation.
- Single-chamber case with a titanium ring.
- Strong electronic circuit protection.
- Sealed AMP circular connector on sensor’s case.
FUEL CONSUMPTION SPECIFICATION :
| Max pressure | 25 Mpa |
| Reverse polarity protection | yes |
| Power supply | 10 -50 V |
| Measurement error | 1 – 1.2% |
| Flow rate in l/h | 1500/3000 |
FUEL CONSUMPTION OUTPUT INTERFACES :
| Direct RS | RS-485 (Modbus RTU protocol support) |
| Direct CAN | CAN J1939 (extended) |
