Oil skimmers are essential environmental sustainability equipment required in Indonesian seas to minimize the impact of marine and aquatic pollution caused by oil spills. This equipment is essential for protecting marine environments from pollution and marine activities from pollution.

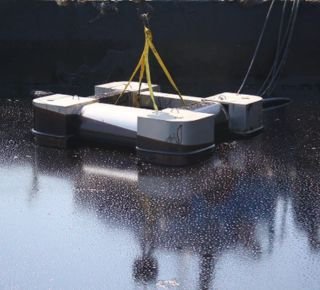

Huahai Disc Oil Skimmer is a high-efficiency environmental protection device for oil spill recovery on water surfaces, integrating technical experience and practical application needs in the global oil spill emergency response field, and has become a core equipment for dealing with oil spill accidents in the maritime and environmental protection sectors. Adopting a hydraulically driven rotary disc core structure, the equipment is adaptable to oil spill recovery scenarios with different viscosities, especially outstanding in the recovery of medium and low viscosity oils (lubricating oil, fuel oil, vegetable oil, etc.), and its recovery rate and oil-water separation efficiency reach the advanced level of international similar products.
In global applications, rotary oil skimmers have been widely used in emergency treatment of marine oil spills, river and lake pollution, port and terminal leaks, industrial pool oil spills and other scenarios due to their flexible adaptability and stable operation capabilities. On this basis, Huahai has optimized the rotary disc speed regulation, floating body structure and material technology, enabling the equipment to meet the operation requirements of complex marine environments such as offshore and open seas, and also adapt to the treatment of small and medium-sized oil spill accidents in inland freshwater waters. It is a key equipment with both versatility and professionalism in the global oil spill emergency response system.
Core Supporting Equipment
| Deployment& Recovery Equipment | Specifications parameter (optional ) |
| Oil skimmer body | 1set |
| Power station | 1set (diesel /electrical motor driven/explosion proof motor) |
| Oil transfer pump | 1set |
| Hydraulic oil pipe | 1set(regular 20m or OEM) |
| Oil delivery pipe | 1set(oil suction port is 10m and oil discharge port is 20m or OEM) |
| Spare parts kits | 1set |
| Tool box | 1set |
| Package | Regular wooden box package for export products with huahai logo (OEM) |
Huahai Disc Oil Skimmer Advantage
Corrosion-resistant materials with strong environmental adaptability : The skimmer head is made of corrosion-resistant stainless steel or marine-grade aluminum alloy, which can be used in both seawater and freshwater areas, resistant to salt spray and chemical corrosion, and adaptable to various harsh operating environments.
Controllable recovery efficiency : Supports stepless speed regulation of the rotary disc, which can be adjusted in real time according to the viscosity, thickness and other conditions of the oil spill site, effectively reducing the water content of the recovered oil and improving the purity of oil recovery.
Stable structure and high safety : The buoy is filled with foam to achieve double buoyancy protection. The overall structure of the equipment is sturdy and durable, and can still operate stably under complex working conditions such as wind, waves and currents.
Rich models and flexible adaptation : A full range of models from SZP5to SZP100 are available, with a maximum recovery efficiency of 5~100 m³/h, which can match the treatment needs of oil spill accidents of different scales; different working components such as disc sets, brush sets and gear disc sets can also be selected according to oil viscosity.
Diversified power systems : Equipped with dual power options of diesel engine or explosion-proof motor, the power is adapted to different models of equipment, which can meet the power needs of explosion-proof scenarios (such as oil depots, petrochemical terminals) and conventional outdoor operations.
Disc Oil Skimmer Application Scenarios
Maritime and marine sector : Emergency recovery of large-scale oil spill accidents such as ocean-going ship oil spills, offshore oil platform leaks, and marine crude oil transportation pipeline ruptures.
Inland water area governance : Cleaning of fuel oil and chemical oil leaks in rivers, lakes, reservoirs and other freshwater areas, as well as remediation of oil spill pollution in urban landscape water bodies.
Port and industrial scenarios : Oil spill recovery from production operations in ports, terminals, shipyards and petrochemical parks; initial oil spill prevention and control in industrial circulating water pools and oil storage tank areas.
Emergency rescue field : As the core equipment of the oil spill emergency response system, it participates in the rapid disposal of various sudden oil spill accidents, and forms a complete “containment-recovery” operation chain with equipment such as oil booms.

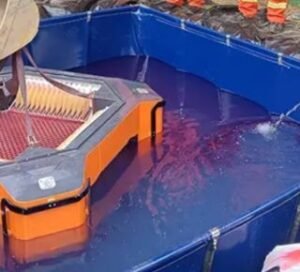

Disc Oil Skimmer Construction
Main structure : The skimmer head (floating part) is made of 304/316 stainless steel or marine aluminum alloy, with the characteristics of light weight, high strength and corrosion resistance; the frame power station and transmission parts are treated with carbon steel spray plastic to enhance weather resistance.
Core working components : Oil-contacting parts such as rotary discs/rotary brushes,/gear discs are made of hydrophobic and oleophilic materials. They have both wear resistance and oil affinity, enhancing the efficiency of oil spill adsorption and stripping.
Buoy filling : The buoy is filled with closed-cell foam material to achieve double buoyancy. Even if the buoy is partially damaged, it will not sink, ensuring operational safety.
Power and hydraulic system : Core hydraulic components such as hydraulic pumps and motors are selected from internationally renowned brands, and oil pipes are made of oil-resistant high-pressure rubber hoses; the power unit is equipped with a diesel engine (explosion-proof motor optional) to meet the explosion-proof and power needs of different scenarios.
Disc Oil Skimmer Technical Parameters
| Parameter Model | SZP5 | SZP10 | SZP20 | SZP30 | SZP50 | SZP560 | SZP100 |
| Capacity {Max recovery rate(m3/h)} | 5 | 10 | 20 | 30 | 50 | 60 | 100 |
| Speed of viscous oil disc(R/min) | 40~100 | ||||||
| Power requirement(KW) : Diesel engine /explosion proof motor/ electrical motor | 4.0/4.0 | 6.3/5.5 | 6.3/7.5 | 14.5/11 | 40/18.5 | 40/18.5 | 40/22 |
| Hydraulic pressure (Mpa/bar) |
4~8Mpa (40~80bar) |
4~12Mpa (40~120bar) |
4~16Mpa (40~160bar) |
||||
| Free water content | <5% | ||||||
| Suction head of oil pump（m） | ≥6 | ||||||
| Lift of oil pump (m) | ≥12 | ≥20 | |||||
