Coalescer Separators General Description

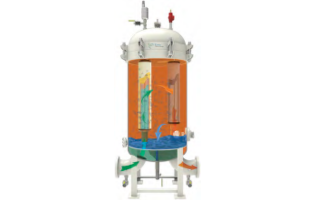

Two-stage coalescer separators are the primary defense against fuel contamination by water and dirt. The coalescer separator housings contain both first-stage coalescer and second-stage separator cartridges with no internal moving parts. The product is pumped under pressure to flow through the housing inlet chamber and inside/out through the multi-media coalescer cartridge. This specially developed multi-media cartridge configuration traps and holds minute solid particles to
less than one micron, while forcing small water droplets to commingle and grow into heavier, larger drops that fall by gravity to the housing sump area. The cleaned fuel continues to flow outside/in through the second-stage separator cartridges. These separator cartridges strip any remaining water droplets from the fuel allowing only clean, dry fuel to pass.
Facet two-stage coalescer separators will continuously remove solids and water contaminants from aviation fuels. Vertical and horizontal housing designs are available with a wide selection of coalescer and separator cartridges to meet specific applications. Housings are designed for easy servicing and low maintenance. All are built to EI 1596 with many standard and optional accessories and connections available to facilitate piping and installation requirements. Facet coalescer
separators provide a complete system that meets industry standards and individual levels of effluent purity required by commercial airlines, major oil companies and governments, worldwide.

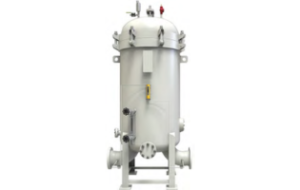

VCS Series Vertical Coalescer Separators, Category C, Type S
Category C Coalescer Separator housings are for commercial aviation fuel. Type S qualifications can be used at all filtration points in an aviation fueling system. Type S is meant to be used at filtration points where significant levels of water and dirt in the product can be expected. Facet VCS Series Vertical Coalescer Separator housings fully comply with EI 1581, Category C, Type S requirements.
Reliable Performance
Facet coalescer separators are a result of 80 years of continuous research and development to meet the ever demanding performance requirements in the aviation fuel handling industry. This, along with proven field performance, demonstrates Facet’s ability to provide quality products that meet current specifications as well as specific customer requirements for installations in refineries, bulk storage terminals, heliports, airports, etc.
Standard Housing Design
• EI 1596 Design & Construction
• Welded carbon steel construction—other materials available on request
• ASME Code, Section VIII construction, stamped and certified
• Design pressure: 150 psi @ 250˚F—other design pressures available on request
• Inlet, outlet and drain connections permanently marked
• Choice of rod or screw base coalescer cartridge mounting styles
• Interior: Epoxy coated (EI 1541)
• Exterior: Prime coated
• Swing bolt head closures
• Buna-N o-ring closure seal
• Knife edge cartridge mounting seals
• Headlift furnished on 18″ (457 mm) OD and larger
• Spider plate attached to vessel wall
• Sloping cartridge plate to drain connection
• 4″ inlet/outlet cleanout/inspection connections (when permitted by design)
• Connections provided for options listed below
Options
• Automatic air eliminator with check valve*
• Pressure relief valve*
• Differential pressure gauge*
• Pilot control valve
• Pilot tester
• Water slug control valve
• Electrical water-level alarm
• Water drain valves
• Liquid level gauge
• Blind cover for pilot control mounting flange
• Immersion heaters
• Sampling probes
• Working platform and ladder
