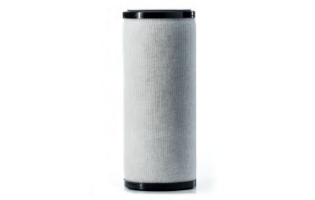

Facet Model EB coalescer cartridges are for removing oil from water. Using a variety of media, these coalescer cartridges use the principle of mechanical impingement and preferential wetting to break any mechanical emulsion of oil and water. Using this force of gravity, the lighter liquid (oil) rises to the top of the vessel where it can be drawn off and the water flows to the bottom of the vessel and out the outlet connection.
Benefits
• pH range from 5 to 9
• Multi-layered media for solids holding
• Solids removal: 15 micron nominal
• Removes oil down to 5 ppm
• Balanced flow characteristics
• Self-centering rod mount
• Recommended maximum operating temperature : 240ºF
• Maximum differential pressure: 75 psi (5.25 kg/cm²)
• Flow direction: Inside to out
Coalescer Applications
• Bilge & Ballast water
• Ship building and repair yards
• Commercial marine ports
