Oil skimmers are essential environmental sustainability equipment required in Indonesian seas to minimize the impact of marine and aquatic pollution caused by oil spills. This equipment is essential for protecting marine environments from pollution and marine activities from pollution.
Huahai Weir Oil Skimmer is a high-efficiency oil spill recovery equipment independently developed by integrating the advantages of international similar products. It focuses on the precise oil-water separation scenario on the water surface, with three core features: adaptive adjustment, high adaptability, and strong durability.
The equipment consists of a floating weir oil recovery unit and a power control station: The power station drives the hydraulic system through a diesel engine/explosion-proof motor to realize stepless speed regulation lifting of the weir body, which can precisely adjust the weir opening to the oil-water interface to ensure high oil recovery efficiency. When used with Huahai self-developed oil containment booms, it can simultaneously complete the integrated “oil containment-oil recovery” operation, effectively curbing pollution diffusion.
This product is suitable for recovering medium and low viscosity oil spills in calm waters with wave heights less than 0.3meters.
Weir Oil Skimmer Core Supporting Equipment
| Deployment& Recovery Equipment | Specifications parameter (optional ) |
| Oil skimmer body | 1set |
| Power station | 1set (diesel /electrical motor driven/explosion proof motor) |
| Oil transfer pump | 1set |
| Hydraulic oil pipe | 1set(regular 20m or OEM) |
| Oil delivery pipe | 1set(oil suction port is 10m and oil discharge port is 20m or OEM) |
| Spare parts kits | 1set |
| Tool box | 1set |
| Package | Regular wooden box package for export products with huahai logo (OEM) |

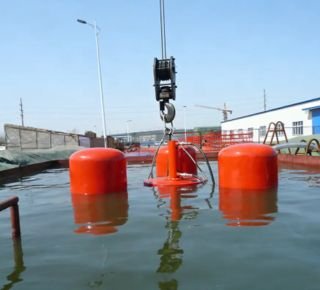

Weir Oil Skimmer Application Scenarios
- Industrial Scenarios : Oil leakage recovery from equipment and floating oil recovery from sewage pools in petrochemical parks, power plants, shipyards, etc.;
- Water Area Scenarios : Vessel oil spills and coastal oil pollution control in ports, wharves, rivers and lakes;
- Emergency Scenarios : Rapid response and disposal of oil spill accidents in offshore/inland waters;
- Supporting Scenarios : Combined with oil containment booms and oil storage tanks to realize integrated “containment-recovery-storage” operations for large-scale oil spills.

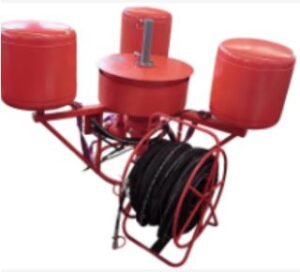

Weir Oil Skimmer System

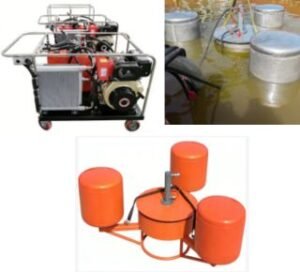

Weir Oil Skimmer Construction
Huahai Weir Oil Skimmer series adopts a unified modular structure, with core components (full-model general + partial model differences) :
- Float Support Unit
– General: 3 Stainless steel floats (provide buoyancy, suitable for wave/current environments in the full series) + stainless steel weir arm l(high strength and corrosion resistance).
– Differences: Large-flow models (e.g., SY-100) have larger float diameters and stronger buoyancy. - Core Skimming Unit
– General: Elevating weir opening (hydraulically driven);
– Differences: Models with higher recovery rates have larger weir opening diameters - Power Control Unit
– General: Diesel engine/explosion-proof motor (optional) + hydraulic system (drives weir opening lifting) + oil transfer pump;
– Differences: Large-flow models are equipped with more powerful power stations - Auxiliary Structure
– General: lifting point (easy to transfer)
Weir Oil Skimmer Technical Parameters
| Parameter | Unit | Model：SY-10 | SY-20 | SY-30 | SY-50 | SY-100 |
| Max. Recovery Rate | m³/h | 10 | 20 | 30 | 50 | 100 |
| Underwater Depth of Overflow Weir | mm | 10~50 | 10~50 | 10~50 | 10~50 | 10~50 |
| Driving Power (Diesel/Explosion-proof Motor) | kW | 6.3/4 | 6.3/7.5 | 14.5/11 | 14.5/15 | 40/22 |
| Suction Head of Oil Recovery Pump | m | 6 | 6 | 6 | 6 | 6 |
| Operating Pressure of Hydraulic Cylinder | MPa |
5 |
||||
| Weir Body Material | – | Stainless Steel(regular material/OEM acceptable) | ||||
| (SY-30）Adaptable Wave Height | m | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 |
