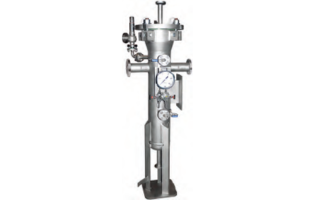

BS Series filter housings use a Facet’s stainless steel high efficiency basket strainer. A single pass of product through the system removes solids such as rust, dirt, scale, granules and other particles commonly found in liquid process streams.
Facet BS Series filter housings are available in several standard sizes to accommodate specific flow and filtration requirements. They are designed with no internal moving parts to provide easy service and reduced maintenance costs. Each housing is manufactured using quality materials and workmanship to give long-lasting, dependable service.
These housings are fitted with a cleanable basket made of stainless steel preforated plate with stainless steel mesh.
Basket Strainers From Oil Water Separator Standard Design Features
• Body: Welded carbon steel construction, other materials available on request
• ASME Code, Section VIII construction, stamped and certified or “CE” marked
• Designed for 150 psi (10.5 kg/cm²) at 240°F (115°C); higher pressure and temperature ratings available on request
• Head closures: swing bolt closure
• Head gasket: Buna-N O-ring, other materials available on request
• Inlet and outlet permanently marked
• Exterior: Primer coated
• Interior: Epoxy coated
• Headlift furnished on 20″ (508 mm) and larger
Basket Strainers From Oil Water Separator Standard Connections
• Inlet and outlet: 150# RF (ANSI) flanged
• Side and bottom drain: 3000# NPT
• Vent and relief valve: ¾” 3000# NPT
• Pressure gauge: ¾” 3000# NPT
Basket Strainers From Oil Water Separator Options
• Air eliminator
• Differential pressure gauge
• Pressure relief valve
• Manual drain valve
• Stainless steel wedge wire basket
• Thru bolts closure
Basket Strainers From Oil Water Separator Data
| MODEL NUMBER | Øa | b | c | d | e | |||||
| in | mm | in | mm | in | mm | in | mm | in | mm | |
| BS-2 | 5½ | 140 | 1113∕16 | 300 | 5½ | 140 | 17¼ | 438 | 9¾ | 248 |
| BS-3 | 65∕8 | 168 | 1611∕32 | 415 | 613∕16 | 175 | 23¼ | 590 | 16¾ | 425 |
| BS-4 | 85∕8 | 219 | 26¾ | 680 | 9½ | 241 | 36 | 914 | 20 | 508 |
| BS-6 | 10¾ | 273 | 4111∕32 | 1050 | 10½ | 270 | 52 | 1320 | 22¾ | 580 |
| BS-8 | 12¾ | 324 | 447∕8 | 1140 | 13 | 330 | 57¾ | 1467 | 27 | 686 |
| BS-10 | 14 | 356 | 511∕5 | 1300 | 13¾ | 350 | 65 | 1651 | 28¼ | 720 |
| BS-12 | 18 | 458 | 49¼ | 1251 | 15¼ | 389 | 64½ | 1638 | 33¼ | 845 |
| BS-14 | 18 | 458 | 63 | 1620 | 150¾ | 400 | 79½ | 2020 | 34¼ | 870 |
| BS-16 | 20 | 508 | 71½ | 1816 | 19¾ | 501 | 91 | 2311 | 36 | 914 |
| BS-20 | 24 | 610 | 74¾ | 1899 | 23½ | 598 | 98½ | 2502 | 41¼ | 1060 |
| BS-24 | 28 | 711 | 110¼ | 2800 | 31½ | 800 | 141¾ | 3600 | 48 | 1220 |
