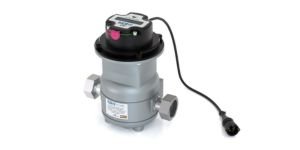

Model line of DFM Industrial flowmeters includes autonomous flow meters with electronic display only (LCD) and flow meters with LCD and output interface cable for sending data to recording devices, displays, tracking units, telematics units.
DFM Industrial flowmeter is mainly used as a part of ship monitoring and machinery operation tracking systems, and as part of Industrial Internet of Things (IIoT) systems, also as autonomous solution for fuel/ liquid consumption.
DFM Industrial Flow Meter Tasks
 |
Fuel (liquid) consumption measurement |
 |
Machine running time tracking |
 |
Optimization of fuel (liquid) consumption |
 |
Preventing thefts of fuel/liquid from pipeline |
 |
Engine testing for fuel consumption
|
Advantages of DFM Industrial
Embedded flow computer, built-in battery, electronic display
DFM Industrial shows measured data on electronic display: 17 informational screens with fuel / liquid consumption, engine/pump operating time and other parameters (see the full list). Raw data is processed by embedded flow computer, which also allows to connect 2 pieces of DFM Industrial for differential liquid consumption measurement. Built-in battery provides autonomous fuel/ liquid consumption measurement even if external power supply is switched off.
Protection against tampering
DFM Industrial records special Counters for protection against tampering attempts:
- “Interference” Counter protects DFM Industrial from magnetic field impact aimed on stopping fuel consumption measurement.
- “Tampering” Counter registers attempts of third party to tamper flow meter data by generating artificial fuel/ liquid consumption (e.g. by blowing the air through measuring chamber).
Compliance with S6 Technology
DFM Industrial can be connected in one S6 network with fuel level sensors to provide detailed reporting on fuel/ liquid consumption. Operation parameters and Counters can also be transferred to S6-compatible display and recording units – e.g. MasterCAN Display 35, CANUp or GPS trackers/telematics units.
Built-in software of DFM Industrial flow meter converts raw data (inputs of physical environment) into ready-to-use information – Parameters, Counters and Events – on fuel/ liquid consumption, operation time, “Tampering”, “Interference”, “High/ low supply voltage level”, “Ignition on / off” Events.
IoT Burger Technology also allows to make advanced configurations of DFM Industrial :
- configure consumption correction factor;
- configure coefficient of volumetric expansion of liquid;
- carry out differential or summarization liquid flow rate monitoring in two and more pipelines within one measurement system.
Fuel consumption and operating time Counters
Fuel/liquid consumption
- Total fuel/liquid consumption, m3
- Total fuel/liquid
- Consumption in “Idling” mode of engine operation
- Total fuel/liquid consumption in “Optimal” mode of engine operation
- Total fuel/liquid consumption in “Overload” mode of engine operation
- Total fuel/liquid consumption. Resettable
- Instant consumption
Engine operating time
- Total operating time, h
- Total operating time in “Idling” engine operation mode
- Total operating time in “Optimal” engine operation mode
- Total operating time in “Overload” engine operation mode
- Total operating time in “Negative” flow meter operation mode
Special
- Engine operating time in “Tampering” mode, h
- Engine operating time in “Interference” mode, h
- Current engine operation mode as per fuel consumption rate
- Fuel/liquid temperature
- Temperature correction status
- Correction coefficient value
- Battery charge

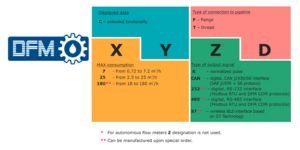

DFM Industrial for measurement of fuel models
| Model | Type of output signal | Connection |
| DFM Industrial 7C T | none | thread |
| DFM Industrial 7C F | none | flange |
| DFM Industrial 25C F | none | flange |
| DFM Industrial 7CK T | normalized pulse | thread |
| DFM Industrial 7CCAN T | digital, CAN j1939/S6 interface | thread |
| DFM Industrial 7CK F | normalized pulse | flange |
| DFM Industrial 7CCAN F | digital, CAN j1939/S6 interface | flange |
|
DFM Industrial 25CK F
|
normalized pulse | flange |
| DFM Industrial 25CCAN F | digital, CAN j1939/S6 interface | flange |

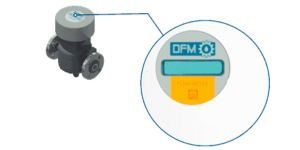

Information on display of DFM Industrial
DFM Industrial with display allows autonomous fuel consumption measurement without data transfer to a server.
Information on DFM Industrial display
Total Fluid Consumption
Total Fluid Consumption counter with higher digit capacity
Flow Meter Operation Time
Flow Meter Operation Time in Idle Mode
Flow Meter Operation Time in Optimal Mode
Flow Meter Operation Time in Overload Mode
Total Fluid Consumption. Clearable
Flow Meter Operation Time. Clearable
Total Fluid Consumption in “Tampering” Mode
Interference Time
Instant Fluid Consumption
Battery Charge in Percentage of the Maximum
Temperature in the Measuring Chamber

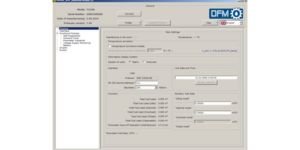

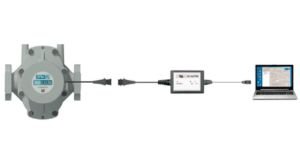

Diagnostics and configuration of DFM Industrial
DFM Industrial is configured with Service S6 DFM Industrial. It is possible to adjust the following settings of DFM Industrial :
• Boundaries of operation modes – “Idling”, “Optimal”, “Overload”, “Tampering”, “Interference;
• correction and temperature correction coefficient
• units of measurement (Metric/US)
DFM Industrial Flow Meter Specification
| Model | DFM Industrial 7 | DFM Industrial 25 |
| MAX flow rate | 7.2 м3/h | 25 м3/h |
| MAX pressure | 1.6 / 6.4* MPa *on request for flange connection |
1.6 / 6.4* MPa * on request |
| Interface | – CAN(J1939)/S6 interface – pulse output – autonomous (without interface |
|
| Kinematic viscosity of liquid | 0.55-300 mm2/s (cSt) | |
| Temperature range for LED display operation | -20…+80 °C | |
| Operating principle | oval gears rotation | |
| Connection to pipeline | flange, thread | |
|
Battery lifetime
|
not less than 36 months | |
| Ingress Protection Rating | IP65 |
Measurement chamber characteristic
| Model | Nominal diameter DN, mm | Nominal measuring chamber volume, l | Mean time before recalibration* |
| DFM Industrial 25 | 40 | 1.0 | 60 000/10 |
| DFM Industrial 7 | 25 | 0,1 | 60 000/10 |
Measurement range and accuracy DFM industrial flow meter
| Model | Starting* flow rate, m3/h | Minimum flow rate, m3/h | Maximum flow rate, m3/h | Inaccuracy** up to, % |
| DFM Industrial 7 | 0,02 | 0,72 | 7,2 | ±0,5 |
| DFM Industrial 25 | 0,5 | 2,5 | 25 | ±0,5 |
* Minimum threshold when flow meter stars operation.
The value is indicated for reference purposes only, accuracy is not standardized in “staring-minimum” interval.
** In differential/summarization measurement mode, inaccuracy is not higher than ±1.0 %
