For Maximum Water Coalescing Efficiency and Solids Holding Capacity
Facet CAA Series 6 coalescer cartridges offer the finest performance available. This standard line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel.
The Facet coalescer separator housings equipped with CAA Series 6 coalescer and companion separatorcartridges have been tested and fully qualified to meet the performance requirements to EI 1581, Sixth Edition, Category C (Category C replaces the previous class A, B, and C of API 1581 3rd Edition.)

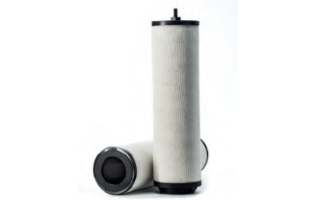

Built for balanced fluid flow-thru and structural strength, each CAA Series 6 coalescer cartridge is a single-piece construction of various combined media, precisely arranged in many layers and pleats, wrapped around a coated, perforated metal center tube —all encased in an outer sock material. All are 6″ OD (152 mm) by 3½” ID (89 mm) and available in standard
interchangeable nominal lengths from 11¼” (290 mm) to 57¼” (1450 mm).
The CAA Series 6 coalescer cartridges are available in two cartridge mounting styles: self-centering rod mount and screw base. The rod mount style has treated metal end caps, while the screw base ends are injection molded, glass-filled nylon. This screw base material offers superior strength and ease of maintenance—uniform threads, no shrinkage, no
galling and no gasket to recover.
A permanently affixed Buna-N gasket seals against the V-type knife edge mounting adaptor to provide a positive seal. It will not separate from the cartridge during installation or change out.
Standard Design Features
• Qualified to the Sixth Edition of EI 1581, Category C
• Multi-layered media for increased solids holding capacity
• Ultra-fine solids removal
• Maximum water coalescence
• Balanced cartridge flow characteristics
• Recommended maximum operating temperature : 240ºF (115ºC)
• Withstand in excess of 75 psi differential pressure
• pH range from 5 to 9
• Screw base or open-end configuration
Materials
• All metal components are treated against corrosion
• Screw base ends are injection molded, glass-filled nylon with locked-in gaskets
• Buna-N gaskets —other materials are available on request
