Oil skimmers are essential environmental sustainability equipment required in Indonesian seas to minimize the impact of marine and aquatic pollution caused by oil spills. This equipment is essential for protecting marine environments from pollution and marine activities from pollution.
Huahai Inclined Belt Oil Skimmer uses hydraulic power to drive the inclined loop belt, pressing surface oil spills into the oil collection tank. It recovers oil via oil-water density difference, composed of hydraulic power station, skimming main unit, etc. Suitable for semi-enclosed/open waters, it features high oil purity and full viscosity adaptability, serving as efficient oil spill equipment for ports, open seas, etc.
Inclined Belt Oil Skimmer Core Supporting Equipment
- Hydraulic power station (diesel/explosion-proof motor)
- Inclined belt skimming main unit
- Hydraulic oil hose & pipeline
- Diversion oil booms
- Boom arm

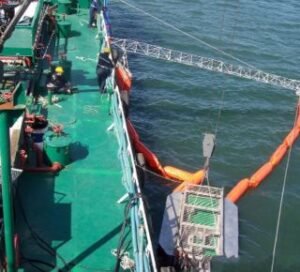

Inclined Belt Oil Skimmer Application Scenarios
- Ports, wharfs, gulfs (semi-enclosed waters)
- Open seas, offshore (open waters)
- Emergency oil spill recovery in rivers & lakes

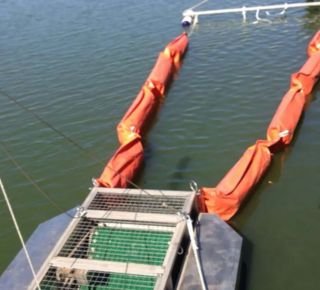

Inclined Belt Oil Skimmer Construction
Composed of hydraulic power station (ship/shore-based), skimming main unit (inclined belt, oil tank, floating body), diversion booms & pipeline system; main unit floats on water, power station drives belt to collect oil spills.
Inclined Belt Oil Skimmer Features
- Oil recovery purity up to 99%, fits full-viscosity oil
- Recovers thick/thin oil (99% rate)
- Works with booms (speed up to 4Kn)
- Tolerates wind/waves/current
- Easy operation/maintenance, rapid emergency response.

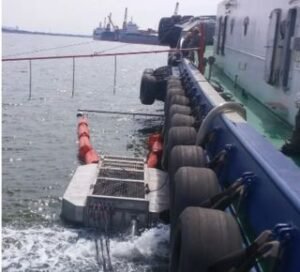

Inclined Belt Oil Skimmer System Operation
Inclined Belt Oil Skimmer Technical Parameters
| Parameter | SDWX-10 | SDWX-30 | SDWX-60 | SDWX-80 | SDWX-100 | SDWX-150 | SDWX-200 |
| Max. Skimming Rate (m3/h) | 10 | 30 | 60 | 80 | 100 | 150 | 200 |
| Working Pressure (MPa) | 3~6 | 4~8 | 4~12 | 4~12 | 4~12 | 4~12 | 4~12 |
| Driving Power (kW)(Diesel engine/explosion -proof motor) | 8.2/7.5 | 14.5/15 | 40/18.5 | 40/22 | 40/22 | 40/30 | 40/37 |
| Adapt to Wave Height (m) | 1.5 | 1.5 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| Lift of Oil Suction Pump (m) | ≥15 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 |
| Quantity of Diversion Booms (Piece) | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Length of Diversion Booms (m) | 6 | 6 | 6 | 6/10 | 6/10 | 6/10 | 6/10 |
| Length of Boom Arm (m) | 6 | 6 | 6 | 6/10 | 6/10 | 6/10 | 6/10 |
